Through Bag Vacuum Connector
As a specialized manufacturer of industrial fluid connection solutions, we produce high-performance through bag vacuum connector systems engineered for demanding composite manufacturing environments. This critical component is designed to create a secure, leak-proof seal between vacuum tubing and vacuum bags or molds during autoclave and out-of-autoclave curing processes. Ideal for B2B buyers in aerospace, automotive, and wind energy sectors, our through bag vacuum connector ensures consistent vacuum integrity and reliable performance, even under extreme thermal and pressure conditions.
Features
Through Bag Vacuum Connector: Precision Sealing for Composite Manufacturing
As a specialized manufacturer of industrial fluid connection solutions, we produce high-performance through bag vacuum connector systems engineered for demanding composite manufacturing environments. This critical component is designed to create a secure, leak-proof seal between vacuum tubing and vacuum bags or molds during autoclave and out-of-autoclave curing processes. Ideal for B2B buyers in aerospace, automotive, and wind energy sectors, our through bag vacuum connector ensures consistent vacuum integrity and reliable performance, even under extreme thermal and pressure conditions.
Technical Specifications & Parameters

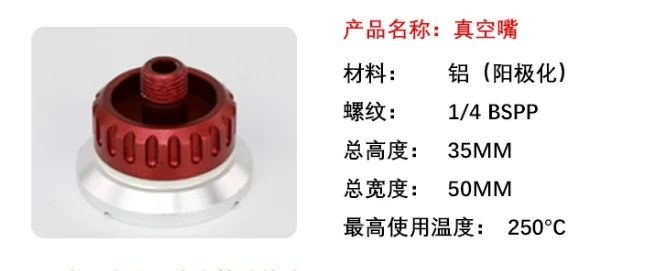

Our through bag vacuum connector is precision-machined from anodized aluminum, offering an optimal balance of lightweight durability and corrosion resistance. The distinctive red anodized finish not only provides high visual identification on the shop floor but also enhances surface wear resistance. Below are the key parameters for the TBC2 series:
|
Parameter |
Specification |
|
Product Name |
Through Bag Vacuum Connector (TBC2) |
|
Structural Material |
Anodized Aluminum |
|
Thread Type |
1/4 BSPP |
|
Total Height |
35mm |
|
Total Width |
50mm |
|
Max Operating Temperature |
250°C |
|
Dimensional Tolerance |
±0.05mm |
|
Compatible Processes |
Autoclave / Out-of-Autoclave Vacuum Bagging |
Key Features & Competitive Advantages
The through bag vacuum connector distinguishes itself through its robust flange design and superior material engineering. Unlike standard plastic or un-anodized metal fittings, our wide-base flange effectively distributes clamping force, preventing deformation or pull-through under high vacuum loads. The premium anodized aluminum construction withstands continuous exposure to 250°C curing cycles without degrading, ensuring long-term reliability in critical aerospace and automotive composite applications. This combination of thermal stability, mechanical strength, and precision tolerances makes it a superior choice for manufacturers demanding zero-defect performance.
Supplier Capabilities & Quality Assurance
As a direct manufacturer based in Zhejiang, China, we offer comprehensive OEM/ODM services, allowing B2B clients to customize thread types, dimensions, or anodizing colors to match specific mold interfaces. Our production facility is equipped with advanced CNC machining centers, ensuring every connector maintains a strict dimensional tolerance of ±0.05mm. Each batch undergoes a rigorous 3-step quality control process: air-tightness testing, thermal cycling validation, and pull-force testing, guaranteeing 100% compliance with industrial standards. We have successfully partnered with leading composite equipment integrators and mold manufacturers across Europe, North America, and Asia, providing consistent quality and responsive technical support for high-volume production lines.
